12V Wall-Mount Adapter for Set-Top Box Projects in Mexico & Brazil

The Challenge

• A consumer-electronics programme in Latin America supplied set-top boxes to operators in Mexico and Brazil, and the external wall-mount adapter had to meet three specific requirements at once: DOE Level VI / EU CoC Tier 2 efficiency for cross-region acceptance, 6 kV surge on the AC input to survive tropical thunderstorms and weak grids, and 8 kV air-discharge ESD tolerance on accessible surfaces.
• Quantity and unit cost both mattered: tens of thousands of units annually, shipped as boxed accessories with the set-top box, so any rejected batch would mean an operator-scale recall.
• Latin American operators also want adapters with the right AC plug variant for each market, ideally from a single BOM line so the same driver electronics ship with US, EU and UK inlet variants.

The Solution

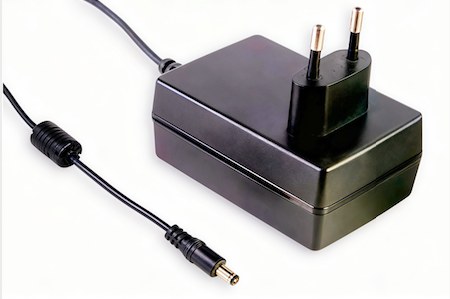

• We supplied a 12V 1.5A (18W) XTS-18WM wall-mount adapter, EU inlet, engineered against the XTS series BOM. The platform is rated DOE Level VI / CoC TIER 2 with <0.075 W no-load consumption, well below the limits the operators' energy-efficiency approvals require.
• AC-input 6 kV differential-mode surge was met by an enhanced MOV + GDT front-end added to the standard platform. ESD was qualified to 8 kV air discharge on the enclosure seams, cable entry and output connector.
• The same driver electronics are available with US, EU and UK inlet variants, so a single XTS-18WM BOM line can ship into Mexico (US inlet), Brazil (EU inlet on the early programme, BR plug later) and other LATAM countries without re-engineering.

Specification Summary

Results

1. Engineering samples qualified on the first submission against both Mexican and Brazilian operator checklists.
2. Total units shipped into the LATAM programme to date (project confidential)
3. Annual volume and operator names — project confidential
4. Same driver electronics continued to be used across US, EU and UK inlet variants without re-engineering.

Related Product

• Wall-Mounted Power Adapter (5-60W, US/EU/UK/BR plug options)
• All LED Driver Products

Case Study FAQ

What is DOE Level VI / CoC TIER 2 and why does it matter?

These are the US Department of Energy Level VI and EU Code of Conduct Tier 2 external power-supply efficiency standards. They cap no-load power (typically <0.075 W for an 18 W class) and require a minimum average active-mode efficiency. Most consumer-electronics operators in the Americas and EU require Level VI for new product acceptance.

Can the same adapter ship into Mexico, Brazil and the rest of LATAM?

Yes — the XTS-18WM platform ships with US, EU and UK inlet variants from the same driver electronics, so a single BOM line covers Mexico (US), Brazil (EU or BR plug) and most other LATAM countries without re-engineering. The AC input range of 90 – 264 V covers all regional grid voltages.

How is 6 kV surge qualified?

The 6 kV differential-mode surge is qualified at the AC input with a defined waveform (1.2/50 µs voltage, 8/20 µs current) and a defined source impedance. The enhanced front-end uses a coordinated MOV + GDT so the surge is clamped before it reaches the converter stage. Test reports are available on request under NDA.

How is 8 kV ESD qualified?

Air-discharge ESD is qualified per IEC 61000-4-2 with 8 kV applied to accessible surfaces (enclosure seams, DC cable entry, output connector). The qualification includes both functional and post-test operation: the unit must continue operating normally after the discharge without user intervention.
